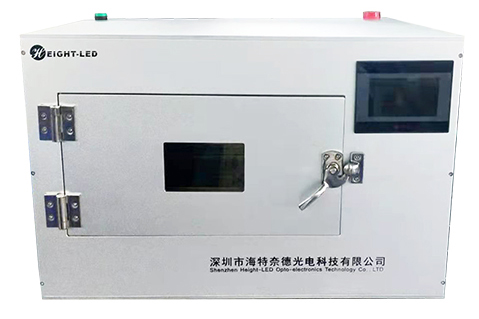

Role: uvled decoupler for optical semiconductor materials UV film decoupling use.

　　Features: made of UV LED light source, tight structure low temperature, uniform exposure, small energy consumption, long service life, reach curing time UV lamp automatically shut down, to prevent personnel from taking material UV leakage, resulting in human injury.　　

　　Light source: UV LED lamp　　

　　uvled uncoupler luminous area: 200 * 200mm　　

　　Light intensity intensity: 100-10000mw　　

　　UV wavelength: 365/385/395/405+5nm　　

　　Light intensity uniformity: 90% +　　

　　Applicable product size: 200m*200mm UVLED uncoupler　　

　　Irradiation method: bottom up irradiation, curing product tray bottom　

　　Cooling method: air-cooled or water-cooled　　

　　Lifespan: 20,000 hours of LED lamp beads　

　　Irradiation height: 50-200m, any height adjustment, according to the actual use of customers　　

　　uvled unglueing machine control mode:

　　1、Automatic moving mode: the product is placed on the partition inside the box. Close the door automatically open the UV lamp (door frame is equipped with sensors automatically induction), to reach the curing time UV lamp automatically shut down waiting for manual pick up material.

　　2、Manual mode: after placing the product manually press the switch on the operation panel to open the UV lamp, reach the curing time UV lamp automatically off waiting for the personnel to take the material.
